Collections of the Holocaust Museum in Sereď, Slovakia

Project:

- Topographical survey of the Holocaust Museum for a further building condition diagnostics project and  structural analysis of the building in cooperation with a registered architect

- Complete scanning of the exterior and interior of the building, black-and-white scanning

holokaust-Muzeum-Sered-Zidia (2).jpg

Technology:

- Raw data imports

- Registration based on ground control points

- Georeferencing of a point cloud in a binding coordinate and altitude system (S-JTSK, Bpv)

- Point cloud classification (Trimble RealWorks 11.2)

- Data block segmentation and clearance

- Generating building sections and elevations, point/line exports

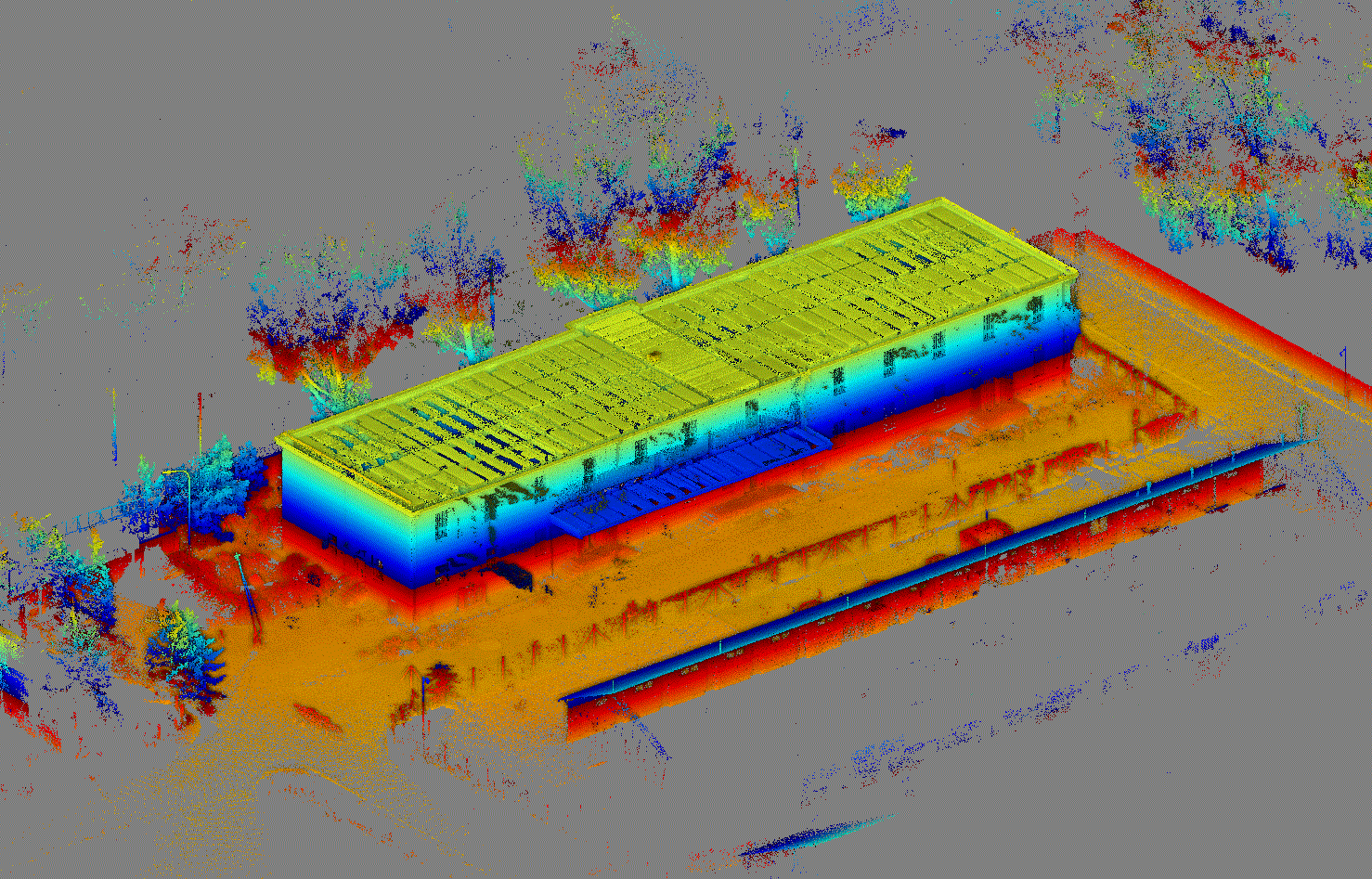

- 3D point cloud preview

- Drawings (Bentley MicroStation Connect Edition)


Outputs:

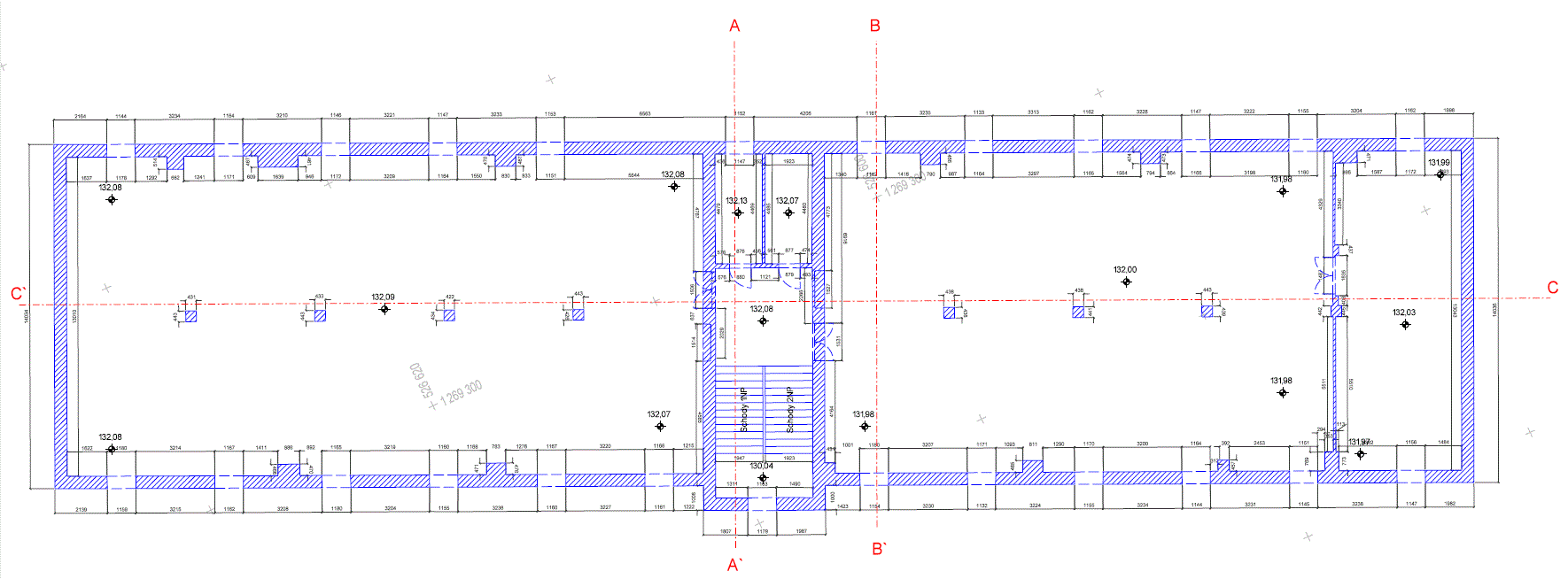

- Floor plan drawings

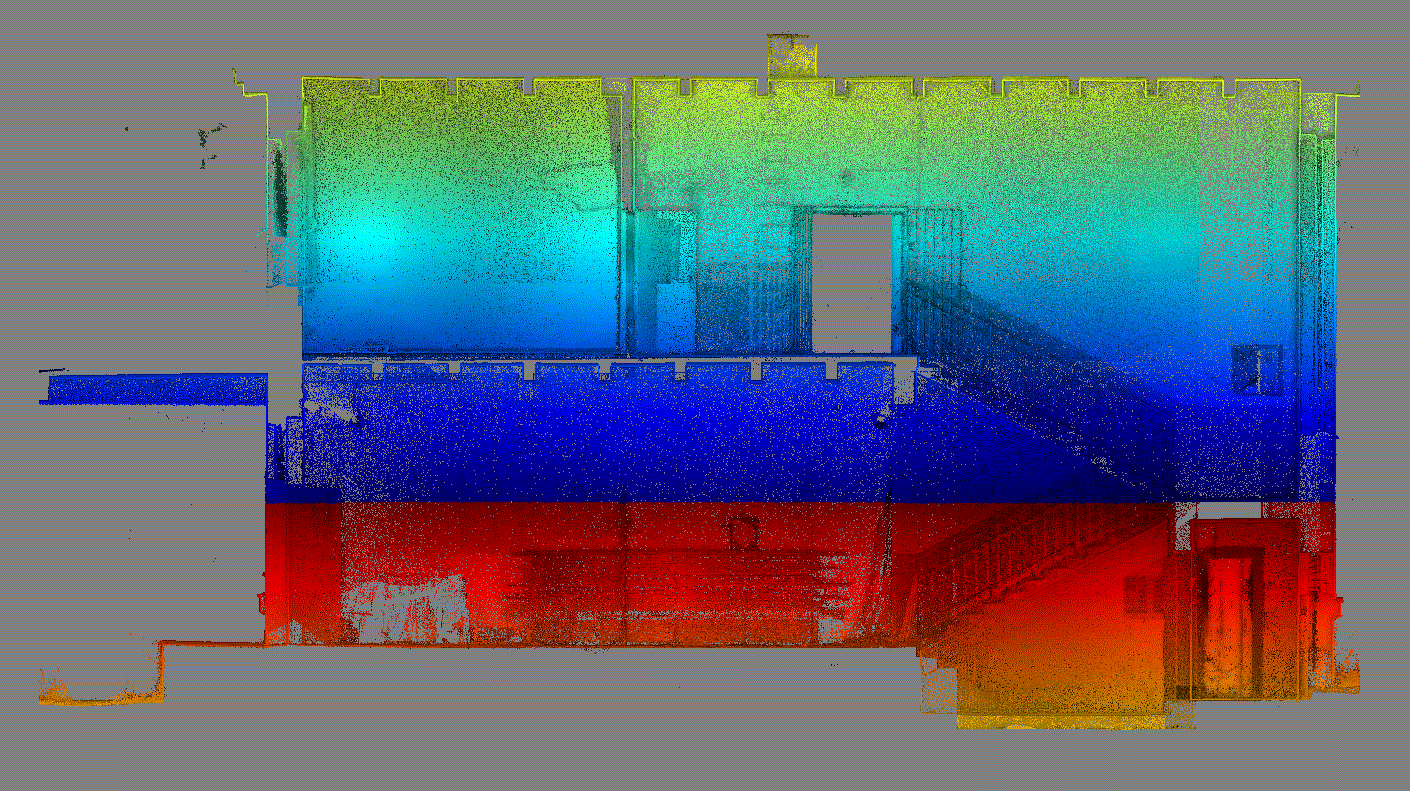

- Vertical sections

- Elevations

- Point cloud relative adjustment accuracy σYXZ=12.00 mm

- Absolute accuracy σYX ≤ 15.00 mm, σZ ≤ 15.00 mm

- 97 scanning positions
